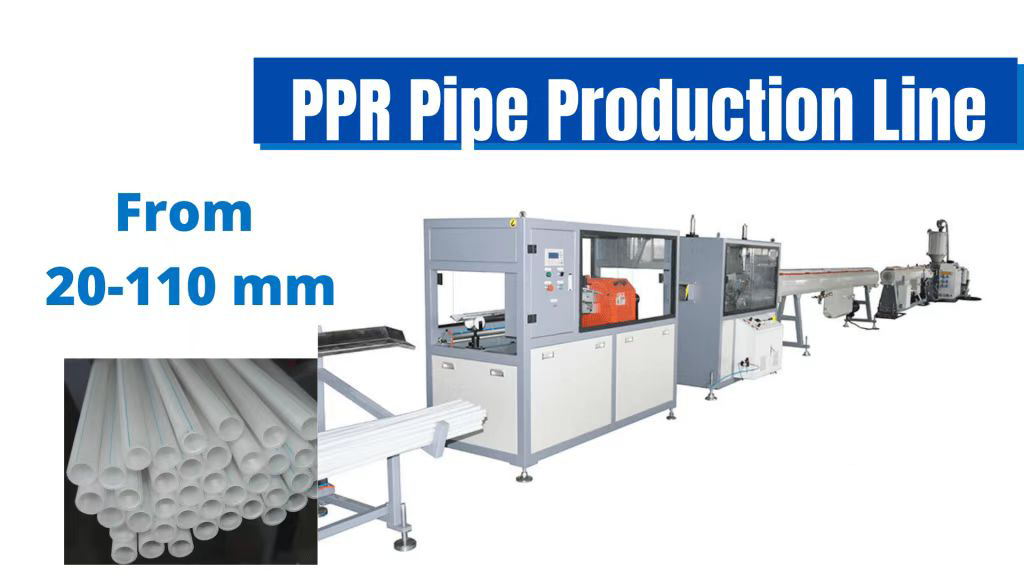

Automatic PPR Pipe Extrusion Line | 20–110mm Stable Production

Brand Name : LB

Model Number : LB-110

Certification : CE/ISO

Place of Origin : ZHANGJIAGANG

MOQ : 1 SET

Price : Negotiable（USD EUR）

Payment Terms : L/C,T/T

Supply Ability : 15 SETS PER MONTH

Delivery Time : 45 WOKING DAYS

Packaging Details : NORMAL PACKAGE

Packing Method : Wooden and film packages

Capacity Range : 500kg/h

Motor : Brand

Voltage : 380V Or Customized

Screw Design : single-screw

Heatingzones : 4 - 6 zones

Machinelength : 10m - 15m

Pipediameterrange : 16mm - 110mm

Motor Brand : Original

Vacuum Tank : 8 meters long

Contact Now

Automatic PPR Pipe Extrusion Line | 20–110mm Stable Production

Co-Extrusion Process

Co-extrusion involves sending two or more molten raw materials through a single die to produce multi-layer pipes with various colors or wall thicknesses. This process combines multiple plastics to create materials with distinct properties, opening new frontiers in material engineering and addressing complex manufacturing needs. Co-extrusion also reduces costs by incorporating recycled and reground scrap within virgin material for applications like handrails, fences, tubing, structural components, and air-blown food containers.

Complete Extrusion Line Components

Single screw extruder
Co-extruder: For manufacturing marking lines on pipes or creating multi-layer pipes
Die head
Vacuum tank: Designed with single or double vacuum chambers based on diameter requirements
Cooling tank: Configured with one, two, or three tanks depending on diameter
Haul-offs: Available in double, three, four, six, eight, ten, or twelve haul-offs configurations based on diameter
Cutter: Options include no-scraps cutter or planetary cutter designs
Coiler/Tipping chute

SPECIFICATIONS

Model	Pipe diameter(mm)	Extruder	Extruder power(kw)	Capacity(kg/hr)
LB-63	16-63	SJ65/33	55AC	150
LB-110	20-110	SJ75/33	75AC	180
